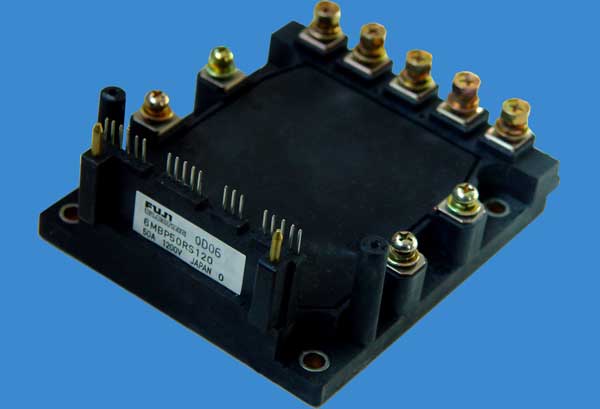

FUJI Intelligent IGBT
(Intelligent Power Modules / FUJI IPM)
 FUJI intelligent IGBT (IPM ?PIM ?7MBR
series)
|
Models (6unit) |
Technical specification |
Wholesale price |
Models (6unit) |
Technical specification |
Wholesale price |
| 6MBP50JB(JA)060 |
50A/600V/6U |
? |
6R6D10A-050BHX |
10A/500V/6U |
? |
6MBP75JB(JA)060 |
75A/600V/6U |
? |
6R6D15A-050BHX |
15A/500V/6U |
? |
| 6MBP100JB(JA)060 |
100A/600V/6U |
? |
6R6D20A-050BHX |
20A/500V/6U |
? |
6MBP150JB(JA)060 |
150A/600V/6U |
? |
6R6D30A-050BHX |
30A/500V/6U |
? |
6MBP200JA(JB)060 |
200A/600V/6U |
? |
6R6D50A-050BHX |
50A/500V/6U |
? |
| 6MBP200(300)KA060 |
200A(300A)/600V/6U |
? |
6R6D10A-120BHX |
10A/1200V/6U |
? |
6MBP50JA120 |
50A/600V/6U |
? |
6R6D15A-120BHX |
15A/1200V/6U |
? |
6MBP75JA120 |
75A/600V/6U |
? |
6R6D25A-120BHX |
25A/1200V/6U |
? |
| 6MBP100JA120 |
100A/600V/6U |
? |
6MBR40SA060 |
40A/600V/6U |
? |
Models (7unit) |
Technical specification |
Wholesale price |
Models (7unit) |
Technical specification |
Wholesale price |
7MBI75N-060 |
75A/600V7U |
? |
7MBR10SA060 |
? |
? |
7MBI100N-060 |
100A/600V/7U |
? |
7MBR30NF(NE)060 |
30A/600V/7U |
? |
7MBI40N-120 |
40A/1200V/7U |
? |
7MBR20SA060 |
20A/600V/7U |
? |
7MBI50N-120 |
50A/1200V/7U |
? |
7MBR30SA060 |
30A/600V/7U |
? |
7MBP50JB060 |
50A/600V/7U |
? |
7MBR10KA060 |
? |
? |
| 7MBP75JB(JA)060 |
75A/600V/7U |
? |
7MBR50NF(NE)060 |
50A/600V/7U |
? |
| 7MBP100JB(JA)060 |
100A/600V/7U |
? |
7MBR50NH060 |
50A/600V/7U |
? |
| 7MBP150JB060 |
150A/600V/7U |
? |
7MBR50LC-060 |
50A/600V/7U |
? |
7MBP200JB060 |
200A/600V/7U |
? |
7MBR50SA060 |
50A/600V/7U |
? |
7MBP50JA120 |
50A/1200V/7U |
? |
7MBR75GE060 |
75A/600V/7U |
? |
7MBP75JB120 |
75A/1200V/7U |
? |
7MBR8LC-120 |
8A/1200V/7U |
? |
7MBP100JB120 |
100A/1200V/7U |
? |
7MBR10NF-120 |
10A/1200V/7U |
? |
7D30D-050EHR |
30A/500V/7U |
? |
7MBR10NE-120 |
10A/1200V/7U |
? |
7D50D-050EHR |
50A/500V/7U |
? |
7MBR10SA(SB)120 |
10A/1200V/7U |
? |
7D75D-050EHR |
75A/500V/7U |
? |
7MBR15NE(NF)120 |
15A/1200V/7U |
? |
7D100D-050EHR |
100A/500V/7U |
? |
7MBR15SA120 |
15A/1200V/7U |
? |
7D150D-050EHR |
150A/500V/7U |
? |
7MBR15(25)LC-120 |
15A(25A)/1200V/7U |
? |
7D30A-050EJR |
30A/500V/7U |
? |
7MBR25NE(NF)120 |
25A/1200V/7U |
? |
7D50A-050EJR |
50A/500V/7U |
? |
7MBR25NH120 |
? |
? |
7D75A-050EJR |
75A/1200V/7U |
? |
7MBR25SA120 |
25A/1200V/7U |
? |
7MBR50SB060 |
? |
? |
7MBR35SA(SB)120 |
35A/1200V/7U |
? |
7MBR75SB060 |
? |
? |
7MBR35SD120 |
35A/1200V/7U |
? |
7MBR100SB060 |
100A/600V/7U |
? |
7MBR50SA(SB)120 |
50A/1200V/7U |
? |
7MBR15LB120 |
? |
? |
7MBR50SD120 |
50A/1200V/7U |
? |
| ? |
? |
? |
7MBR15LD120 |
? |
? |
FUJI R series IGBT—IPM
intelligent module |
IGBT—IPM intelligent power
module contains the drive circuit and the
well-found protective functions. The IPM module
are adopted and the inverter can farthest raise
the whole reliability of machine, and the craft
is simple, the cost is cheap. The R series IPM
module cardinal function and characteristicses:
1. The Built-in drive circuit:
Have the soft switch characteristic, can control
the DV/ DT and resist the surge voltage when the
IGBT is switched. Be Drived with the single
power supply, don't need the reverse direction
bias power supply. Anticipate to misleading the
on. While being turned off, low impedance gnd of
the IGBT grid, prevent noise from raising VON
and misleading the on. The drive circuits of
each IGBT set the best drive condition.
2. The various protective Built-in drive
circuit: Each IGBT have the overcurrent
safeguard(OC) function , load short circuit
protection (SC), the control power supply
undervoltage protection(UV), the overheating
safeguard(OH)function , etc . Each IGBT contains
detecting element of temperature,so that the
chip's transnormal overheating let IGBT realize
high-speed (T j OH)safeguard.
3. The built-in alarm output function: When
OH or bridge arm OC, TJOH, UV, and etc.,realize
safeguard function, output transnormal signal to
the microcomputer that controlled by IPM and the
system emergency stop.
4. Braking circuit: The module of IPM that
includes the braking unit ( the 7MBPs includes
this unit, the 6 MBPs does not include this
unit) use the unit and can refrain the voltage
of the PN terminal to rise sharply. |
Models(6U/600V)IPM |
Technical specification |
Wholesale price |
Models (6U/600/1200V)IPM |
Technical specification |
Wholesale price |
6MBP15RY060 |
15A/600V/6U |
? |
6MBP100NA060 |
100A/600V/6U |
? |
6MBP20RTA060 |
20A/600V/6U |
? |
6MBP150RA(RF)060 |
150A/600V/6U |
? |
6MBP20JB060 |
20A/600V/6U |
? |
6MBP150RS060 |
150A/600V/6U |
? |
6MBP20RY060 |
20A/600V/6U |
? |
6MBP160RTA060 |
160A/600V/6U |
? |
6MBP30RY060 |
30A/600V/6U |
? |
6MBP200RA(RS)060 |
200A/600V/6U |
? |
6MBP15RH060 |
15A/600V/6U |
? |
6MBP300RA060 |
300A/600V/6U |
? |
6MBP20RH060 |
20A/600V/6U |
? |
6MBP25RA(RS)120 |
25A/1200V/6U |
? |
6MBP30RH060 |
30A/600V/6U |
? |
6MBP25TEA120 |
? |
? |
6MBP50TEA060 |
50A/600V/6U |
? |
6MBP50TEA120 |
? |
? |
6MBP75TEA060 |
? |
? |
6MBP75TEA120 |
? |
? |
6MBP100TEA060 |
? |
? |
6MBP50RA(RS)120 |
50A/1200V/6U |
? |
6MBP150TEA060 |
? |
? |
6MBP75RA(RS)120 |
75A/1200V/6U |
? |
6MBP50RA060 |
50A/600V/6U |
? |
6MBP100RA(RS)120 |
100A/1200V/6U |
? |
| 6MBP75RA(RS)060 |
75A/600V/6U |
? |
6MBP150RA120 |
150A/1200V/6U |
? |
| 6MBP100RA(RS)060 |
100A/600V/6U |
? |
? |
? |
? |
Models (7U/600V)IPM |
Technical specification |
Wholesale price |
Models (7U/1200V)IPM |
Technical specification |
Wholesale price |
7MBP50RA060 |
50A/600V/7U |
? |
7MBP25RA120 |
25A/1200V/7U |
? |
7MBP50TEA060 |
? |
? |
7MBP50RA120 |
50A/1200V/7U |
? |
7MBP75TEA060 |
? |
? |
7MBP75RA120 |
75A/1200V/7U |
? |
7MBP100TEA060 |
? |
? |
7MBP100RA120 |
100A/1200V/7U |
? |
7MBP150TEA060 |
? |
? |
7MBP150RA120 |
150A/1200V/7U |
? |
7MBP75KB060 |
75A/600V/7U |
? |
7MBP25TEA120 |
? |
? |
7MBP75RA060 |
75A/600V/7U |
? |
7MBP50TEA120 |
? |
? |
7MBP100RA060 |
100A/600V/7U |
? |
7MBP75TEA120 |
? |
? |
7MBP100KB060 |
100A/600V/7U |
? |
? |
? |
? |
| 7MBP150RA(RF)060 |
150A/600V/7U |
? |
? |
? |
? |
7MBP200RA060 |
200A/600V/7U |
? |
? |
? |
? |
7MBP300RA060 |
300A/600V/7U |
? |
? |
? |
? |
|
|
|
|
|
|
|
|
|
|
