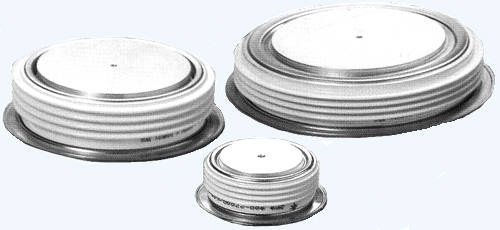

Силовые верхмощные диоды
Особенности:
|
|
Применение:
- Двигатели высокой мощности для транспорта и промышленности
- Сварка
- Гальваника
|
Тип |
Urrm
V |
If(av) (Tc=100oC)
A |
Ifsm 10ms
kA |
Ufm/Ifm
V/A |
UFO
V |
rF
mOm |
TVJM
oC |
RthJC
K/W |
RthCH
K/W |
F
kN |
ZP6500 |
600-1400 |
500 |
6.9 |
800/1.33 |
0.80 |
0.657 |
190 |
0.090 |
0.01 |
5 |
ZP6300 |
1600-2200 |
300 |
5.3 |
800/1.71 |
0.82 |
1.110 |
175 |
0.090 |
0.01 |
5 |
ZP71300 |
600-1400 |
1300 |
16.3 |
1500/1.17 |
0.78 |
0.257 |
190 |
0.035 |
0.01 |
10 |
ZP7900 |
1600-2200 |
900 |
12.6 |
1500/1.47 |
0.82 |
0.433 |
175 |
0.035 |
0.01 |
10 |
ZP7800 |
2400-3400 |
800 |
10.6 |
1500/1.80 |
0.88 |
0.613 |
175 |
0.035 |
0.01 |
10 |
ZP81500 |
600-1400 |
1500 |
21.0 |
1500/1.06 |
0.78 |
0.188 |
190 |
0.035 |
0.008 |
15 |
ZP81100 |
1600-2200 |
1100 |
16.5 |
1500/1.30 |
0.82 |
0.318 |
175 |
0.035 |
0.008 |
15 |
ZP8900 |
2400-3400 |
900 |
13.8 |
1500/1.56 |
0.88 |
0.450 |
175 |
0.035 |
0.008 |
15 |
ZP8600 |
3600-4400 |
600 |
12.0 |
1500/1.87 |
0.96 |
0.604 |
150 |
0.035 |
0.008 |
15 |
ZP92700 |
600-1400 |
2700 |
33.9 |
1500/0.92 |
0.78 |
0.092 |
190 |
0.020 |
0.005 |
22 |
ZP92000 |
1600-2200 |
2000 |
26.1 |
1500/1.05 |
0.82 |
0.156 |
175 |
0.020 |
0.005 |
22 |
ZP91800 |
2400-3400 |
1800 |
23.0 |
1500/1.18 |
0.88 |
0.200 |
175 |
0.020 |
0.005 |
22 |
ZP91200 |
3600-4400 |
1200 |
18.9 |
1500/1.40 |
0.96 |
0.296 |
150 |
0.020 |
0.005 |
22 |
ZPA4500 |
600-1400 |
4500 |
53.3 |
3000/0.91 |
0.76 |
0.051 |
190 |
0.013 |
0.004 |
45 |
ZPA3300 |
1600-2200 |
3300 |
41.1 |
3000/1.05 |
0.79 |
0.086 |
175 |
0.013 |
0.004 |
45 |
ZPA2900 |
2400-3400 |
2900 |
34.6 |
3000/1.21 |
0.85 |
0.121 |
175 |
0.013 |
0.004 |
45 |
ZPA1900 |
3600-4400 |
1900 |
29.9 |
3000/1.45 |
0.96 |
0.162 |
150 |
0.013 |
0.004 |
45 |
ZPX6000 |
600-1400 |
6000 |
74.1 |
3000/0.87 |
0.76 |
0.035 |
190 |
0.010 |
0.003 |
56 |
ZPX4400 |
1600-2200 |
4400 |
57.0 |
3000/0.99 |
0.81 |
0.059 |
175 |
0.010 |
0.003 |
56 |
ZPX3900 |
2400-3400 |
3900 |
47.8 |
3000/1.10 |
0.85 |
0.084 |
175 |
0.010 |
0.003 |
56 |
ZPX2600 |
3600-4400 |
2600 |
41.4 |
3000/1.28 |
0.94 |
0.112 |
150 |
0.010 |
0.003 |
56 |
Тип
|
Urrm
V |
If(av) (Tc=100oC)
A |
Ifsm 10ms
kA |
Ufm/Ifm
V/A |
UFO
V |
rF
mOm |
TVJM
oC |
RthJC
K/W |
RthCH
K/W |
F
kN |
ZP8700 |
4600-5200 |
700 |
10.0 |
1000/1.38 |
0.89 |
0.487 |
150 |
0.035 |
0.008 |
15 |
ZP8500 |
5400-6500 |
500 |
7.9 |
1000/1.84 |
0.92 |
0.920 |
150 |
0.035 |
0.008 |
15 |
ZP91200 |
4600-5200 |
1200 |
17.1 |
1500/1.37 |
0.94 |
0.284 |
150 |
0.020 |
0.005 |
22 |
ZP91000 |
5400-6500 |
1000 |
14.5 |
1500/1.73 |
1.05 |
0.450 |
150 |
0.020 |
0.005 |
22 |
ZPA1700 |
4600-5200 |
1700 |
27.0 |
3000/1.62 |
0.96 |
0.220 |
150 |
0.013 |
0.004 |
45 |
ZPA1500 |
5400-6500 |
1500 |
23.0 |
3000/1.87 |
1.00 |
0.290 |
150 |
0.013 |
0.004 |
45 |
ZPX2100 |
4600-5200 |
2100 |
30.0 |
3000/1.59 |
1.00 |
0.195 |
150 |
0.010 |
0.003 |
56 |
ZPX2000 |
5400-6500 |
2000 |
28.6 |
3000/1.69 |
1.00 |
0.230 |
150 |
0.010 |
0.003 |
56 |
ZPB6100 |
1600-2200 |
6100 |
71.0 |
6000/1.09 |
0.82 |
0.045 |
175 |
0.007 |
0.002 |
70 |
ZPB5000 |
2400-3400 |
5000 |
53.0 |
6000/1.29 |
0.80 |
0.082 |
175 |
0.007 |
0.002 |
70 |
ZPB3500 |
3600-4400 |
3500 |
51.7 |
6000/1.50 |
0.98 |
0.086 |
150 |
0.007 |
0.002 |
70 |
ZPB3100 |
4600-5200 |
3100 |
44.0 |
6000/1.78 |
1.00 |
0.130 |
150 |
0.007 |
0.002 |
70 |
ZPB2800 |
5400-6500 |
2800 |
39.8 |
6000/2.02 |
1.15 |
0.145 |
150 |
0.007 |
0.002 |
70 |
ZPC7400 |
1600-2200 |
7400 |
83.7 |
6000/1.03 |
0.82 |
0.035 |
175 |
0.006 |
0.002 |
90 |
ZPC6600 |
2400-3400 |
6600 |
75.0 |
6000/1.10 |
0.80 |
0.050 |
175 |
0.006 |
0.002 |
90 |
ZPC4200 |
3600-4400 |
4200 |
60.0 |
6000/1.32 |
0.80 |
0.086 |
150 |
0.006 |
0.002 |
90 |
ZPC3900 |
4600-5200 |
3900 |
55.0 |
6000/1.44 |
0.80 |
0.107 |
150 |
0.006 |
0.002 |
90 |
ZPC3400 |
5400-6500 |
3400 |
46.0 |
6000/1.84 |
1.15 |
0.115 |
150 |
0.006 |
0.002 |
90 |
ZPD10000 |
1600-2200 |
10000 |
110.0 |
6000/0.98 |
0.77 |
0.035 |
175 |
0.004 |
0.0008 |
120 |
ZPD9400 |
2400-3400 |
9400 |
100.0 |
6000/1.04 |
0.80 |
0.040 |
175 |
0.004 |
0.0008 |
120 |
ZPD6100 |
3600-4400 |
6100 |
67.0 |
6000/1.19 |
0.80 |
0.065 |
150 |
0.004 |
0.0008 |
120 |
ZPD5700 |
4600-5200 |
5700 |
63.0 |
6000/1.26 |
0.80 |
0.076 |
150 |
0.004 |
0.0008 |
120 |
ZPD5000 |
5400-6500 |
5000 |
55.0 |
6000/1.65 |
1.15 |
0.083 |
150 |
0.004 |
0.0008 |
120 |
ZPD4800 |
6600-7200 |
4800 |
53.0 |
6000/1.71 |
1.15 |
0.094 |
150 |
0.004 |
0.0008 |
120 |
ZPD4500 |
7800-8500 |
4500 |
50.0 |
6000/1.81 |
1.15 |
0.110 |
150 |
0.004 |
0.0008 |
120 |
|
|
