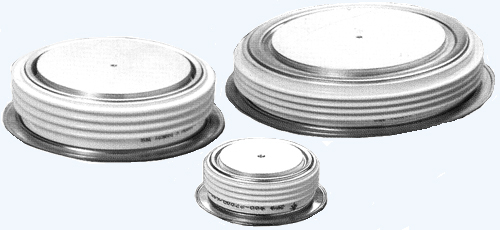

Силовые сверхмощные тиристоры
Особенности:
|
|
Применение:
- Двигатели высокой мощности для транспорта и промышленности
- Сварка
- Гальваника
|
Тип |
Udrm(Urrm)
V |
It(av) (Tc=70oC)
A |
Itsm10ms
kA |
Utm/Itm
V/A |
UTO
V |
rT
mOm |
TVJM
oC |
RthJC
K/W |
RthCH
K/W |
F
kN |
|
KP6400 |
600-1200 |
400 |
6.4 |
600/1.23 |
0.85 |
0.640 |
125 |
0.080 |
0.02 |
5 |
|
KP6300 |
1200-1600 |
300 |
4.3 |
600/1.62 |
0.93 |
1.150 |
125 |
0.080 |
0.02 |
5 |
|
KP5700 |
600-1200 |
700 |
9.5 |
1500/1.56 |
0.87 |
0.459 |
125 |
0.041 |
0.01 |
5 |
|
KP5600 |
1200-1600 |
600 |
8.3 |
1500/1.77 |
0.87 |
0.601 |
125 |
0.041 |
0.01 |
5 |
|
KP5500 |
1800-2200 |
500 |
6.3 |
1500/2.49 |
0.94 |
1.036 |
125 |
0.041 |
0.01 |
5 |
|
KP5400 |
2400-3400 |
400 |
4.9 |
1500/3.63 |
1.04 |
1.725 |
125 |
0.041 |
0.01 |
5 |
|
KP7800 |
600-1200 |
800 |
9.8 |
1500/1.44 |
0.87 |
0.382 |
125 |
0.035 |
0.01 |
10 |
|
KP7700 |
1200-1600 |
700 |
8.5 |
1500/1.65 |
0.90 |
0.500 |
125 |
0.035 |
0.01 |
10 |
|
KP7600 |
1800-2200 |
600 |
7.1 |
1500/2.00 |
0.92 |
0.720 |
125 |
0.035 |
0.01 |
10 |
|
KP7500 |
2400-3400 |
500 |
5.5 |
1500/2.78 |
0.98 |
1.200 |
125 |
0.035 |
0.01 |
10 |
|
KP8900 |
600-1200 |
900 |
16.9 |
1500/1.18 |
0.86 |
0.215 |
125 |
0.037 |
0.008 |
15 |
|
KP8800 |
1200-1600 |
800 |
13.5 |
1500/1.41 |
0.90 |
0.338 |
125 |
0.037 |
0.008 |
15 |
|
KP8700 |
1800-2200 |
700 |
11.2 |
1500/1.66 |
0.93 |
0.486 |
125 |
0.037 |
0.008 |
15 |
|
KP8500 |
2400-3400 |
500 |
8.0 |
1500/2.49 |
1.03 |
0.970 |
125 |
0.037 |
0.008 |
15 |
|
KP8400 |
3600-4200 |
400 |
6.5 |
1500/3.36 |
1.15 |
1.470 |
125 |
0.037 |
0.008 |
15 |
|
KP91500 |
600-1200 |
1500 |
27.1 |
1500/1.07 |
0.86 |
0.140 |
125 |
0.023 |
0.005 |
22 |
|
KP91300 |
1200-1600 |
1300 |
23.6 |
1500/1.20 |
0.92 |
0.184 |
125 |
0.023 |
0.005 |
22 |
|
KP91200 |
1800-2200 |
1200 |
19.9 |
1500/1.35 |
0.96 |
0.260 |
125 |
0.023 |
0.005 |
22 |
|
KP9900 |
2400-3400 |
900 |
13.9 |
1500/1.92 |
1.08 |
0.560 |
125 |
0.023 |
0.005 |
22 |
|
KP9700 |
3600-4200 |
700 |
11.3 |
1500/2.35 |
1.15 |
0.799 |
125 |
0.023 |
0.005 |
22 |
|
KPA2000 |
1200-1600 |
2000 |
36.9 |
3000/1.30 |
0.92 |
0.125 |
125 |
0.015 |
0.004 |
45 |
|
KPA1800 |
1800-2200 |
1800 |
30.8 |
3000/1.50 |
0.96 |
0.179 |
125 |
0.015 |
0.004 |
45 |
|
KPA1400 |
2400-3400 |
1400 |
23.9 |
3000/1.94 |
1.05 |
0.298 |
125 |
0.015 |
0.004 |
45 |
|
KPA1200 |
3600-4200 |
1200 |
19.4 |
3000/2.51 |
1.15 |
0.452 |
125 |
0.015 |
0.004 |
45 |
|
KPX2600 |
1200-1600 |
2600 |
51.0 |
3000/1.21 |
0.95 |
0.088 |
125 |
0.012 |
0.003 |
56 |
|
KPX2300 |
1800-2200 |
2300 |
42.6 |
3000/1.34 |
0.96 |
0.127 |
125 |
0.012 |
0.003 |
56 |
|
KPX1900 |
2400-3400 |
1900 |
33.0 |
3000/1.71 |
1.00 |
0.235 |
125 |
0.012 |
0.003 |
56 |
|
KPX1600 |
3600-4200 |
1600 |
26.8 |
3000/2.11 |
1.15 |
0.320 |
125 |
0.012 |
0.003 |
56 |
|
Тип |
Udrm(Urrm)
V |
It(av) (Tc=70oC)
A |
Itsm 10ms
kA |
Utm/Itm
V/A |
UTO
V |
rT
mOm |
TVJM
oC |
RthJC
K/W |
RthCH
K/W |
F
kN |
KP8400 |
4400-5200 |
400 |
5.5 |
500/2.00 |
1.20 |
1.600 |
125 |
0.037 |
0.008 |
15 |
KP8300 |
5400-6500 |
300 |
4.8 |
500/2.35 |
1.20 |
2.300 |
125 |
0.037 |
0.008 |
15 |
KP9800 |
4400-5200 |
800 |
11.0 |
1000/1.90 |
1.12 |
0.780 |
125 |
0.022 |
0.005 |
22 |
KP9700 |
5400-6500 |
700 |
10.0 |
1000/2.19 |
1.22 |
0.970 |
125 |
0.022 |
0.005 |
22 |
KPA1300 |
4400-5200 |
1300 |
18.0 |
1500/1.73 |
1.10 |
0.420 |
125 |
0.015 |
0.004 |
40 |
KPA1000 |
5400-6500 |
1000 |
14.0 |
1500/2.37 |
1.20 |
0.780 |
125 |
0.015 |
0.004 |
40 |
KPX1700 |
4400-5200 |
1700 |
24.0 |
1500/1.52 |
1.02 |
0.330 |
125 |
0.011 |
0.003 |
50 |
KPX1300 |
5400-6500 |
1300 |
18.0 |
1500/2.13 |
1.18 |
0.632 |
125 |
0.011 |
0.003 |
50 |
KPB3600 |
1800-2200 |
3600 |
66.0 |
6000/1.43 |
0.96 |
0.079 |
125 |
0.008 |
0.002 |
70 |
KPB3000 |
2400-3400 |
3000 |
53.0 |
6000/1.78 |
1.05 |
0.121 |
125 |
0.008 |
0.002 |
70 |
KPB2500 |
3600-4200 |
2500 |
41.0 |
6000/2.35 |
1.15 |
0.200 |
125 |
0.008 |
0.002 |
70 |
KPB2100 |
4400-5200 |
2100 |
36.0 |
6000/2.88 |
1.30 |
0.264 |
125 |
0.008 |
0.002 |
70 |
KPB1900 |
5400-6500 |
1900 |
31.0 |
6000/3.62 |
1.40 |
0.370 |
125 |
0.008 |
0.002 |
70 |
KPC4500 |
1800-2200 |
4500 |
84.0 |
6000/1.31 |
0.96 |
0.059 |
125 |
0.0065 |
0.002 |
90 |
KPC3700 |
2400-3400 |
3700 |
65.0 |
6000/1.63 |
1.04 |
0.098 |
125 |
0.0065 |
0.002 |
90 |
KPC3100 |
3600-4200 |
3100 |
53.0 |
6000/2.04 |
1.15 |
0.149 |
125 |
0.0065 |
0.002 |
90 |
KPC2700 |
4400-5200 |
2700 |
46.0 |
6000/2.53 |
1.35 |
0.197 |
125 |
0.0065 |
0.002 |
90 |
KPC2200 |
5400-6500 |
2200 |
39.0 |
6000/3.50 |
1.40 |
0.350 |
125 |
0.0065 |
0.002 |
90 |
KPD6800 |
2200-2800 |
6800 |
95.0 |
6000/1.19 |
0.88 |
0.052 |
125 |
0.004 |
0.0008 |
120 |
KPD5200 |
3000-4200 |
5200 |
85.0 |
6000/1.58 |
0.98 |
0.100 |
125 |
0.004 |
0.0008 |
120 |
KPD4800 |
4400-5200 |
4800 |
75.0 |
3000/1.40 |
1.05 |
0.116 |
125 |
0.004 |
0.0008 |
120 |
KPD3900 |
5400-6500 |
3900 |
65.0 |
3000/1.75 |
1.18 |
0.190 |
125 |
0.004 |
0.0008 |
120 |
KPD1900 |
6600-7200 |
1900 |
38.0 |
3000/1.85 |
1.26 |
0.197 |
90 |
0.004 |
0.0008 |
120 |
KPD1500 |
7800-8500 |
1500 |
40.0 |
1500/1.90 |
1.30 |
0.400 |
90 |
0.004 |
0.0008 |
120 |
|
|
